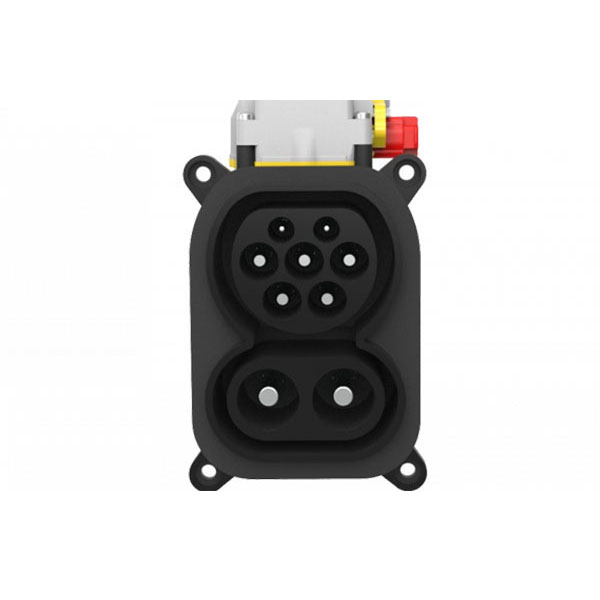

Product description: Charging modes: Mode 2, 3, 4
Temperature monitoring: AC contacts: 2 x PT1000;
DC contacts: 2 x PT1000
Number of connections: > 10,000 Cycles
Protection rating: Paired: IP55; Unpaired: IP54; Cable
Charging modes: Mode 2, 3, 4
Temperature monitoring: AC contacts: 2 x PT1000;
DC contacts: 2 x PT1000
Number of connections: > 10,000 Cycles
Protection rating: Paired: IP55; Unpaired: IP54; Cable output: IP67
Ambient Temperature: Operating: -40°C ~ +50°C; Storage: -40°C ~ +85°C
DC Charging: 1000V DC / 200A
AC Charging: 1 phase, 250V AC / up to 80A
Cable range: 50-95mm² DC power cable: LV2 compliant;
10-16mm² AC power cable: according to LV216;
25mm² PE cable: according to ISO 6722
Locking actuator: 12V / 24V power supply
∷
