Charging gun series

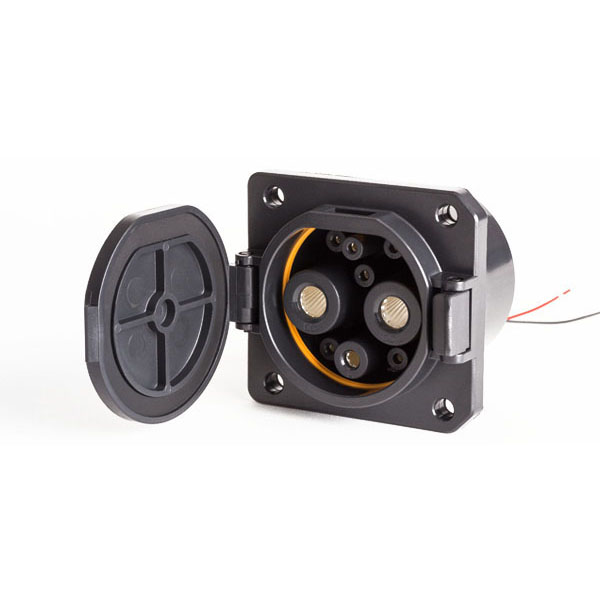

GB DC charging sockets

Product description: Rated current: 80/125/250A Rated voltage: 750/1,000V AC Insertion force: F<140N Socket Durability: No-load plug/unplug >10,000 times Protection Grade: IP55 (Mated) Ambient Temperature: -40°C~+85°
INQUIRY

Rated current: 80/125/250A
Rated voltage: 750/1,000V AC
Insertion force: F<140N
Socket Durability: No-load plug/unplug >10,000 times
Protection Grade: IP55 (Mated)
Ambient Temperature: -40°C~+85°C
Marginal Impedance: >1,000MΩ
