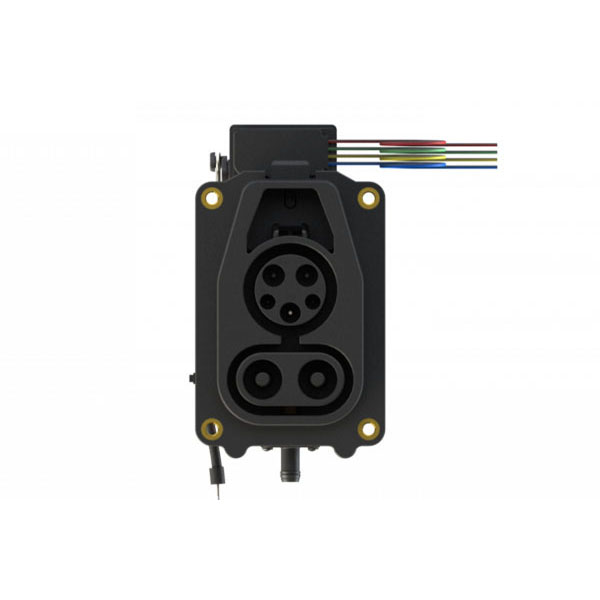

CCS1 DC charging socket

CCS1 DC charging socket

  • Product description: Charging Mode: Mode 2, 3, 4 Temperature Monitoring: AC Contacts: 2 x PT1000; DC contacts: 2 x PT1000 Number of connections: > 10,000 Cycles Protection Rating: Paired: IP55; Unpaired: IP54; Cable O
  • INQUIRY
Charging Mode: Mode 2, 3, 4
Temperature Monitoring: AC Contacts: 2 x PT1000;
DC contacts: 2 x PT1000
Number of connections: > 10,000 Cycles
Protection Rating: Paired: IP55; Unpaired: IP54; Cable Output: IP67
Ambient Temperature: Operating: -40°C ~ +50°C; Storage: -40°C ~ +85°C
DC Charging: 1000V DC / 200A
AC Charging: 1 phase, 250V AC / up to 80A
Cable range: 50-95mm² DC power cable: LV2 compliant; 10-16mm² AC power cable: LV216 compliant; 25mm² PE cable: ISO 6722- compliant.
Locking actuator: 12V / 24V power supply
